 PRODUCT CATALOG >> Type 26-UBN TiN Taps Straight Flute Hand Set

Titanium Nitride Straight Flute Tap – Set

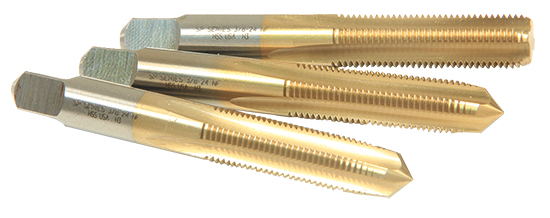

Type 26-UBN Titanium Nitride Taper, Plug & Bottoming Straight Flute Set
26-UBN TiN Taper, Plug & Bottoming Straight Flute Set


Includes one each Titanium nitride Taper, plug & bottoming taps.
High performance taps are available in complete sets of one taper, plug
    and bottoming tap of the same size
.
Versatile taps for use in general machine tapping OR CNC tapping applications.
Proudly manufactured in the USA.

Adobe Acrobat Logo PDF — 26-UBN Titanium Nitride Taper, Plug & Bottoming Tap Set




Basic Pitch Diameter
Pitch diameter varies with the number of threads per inch because the number of threads of pitch screw determines the height of thread.
Since Basic pitch diameter is measured from points half the height of the fully formed thread, a hole drilled to provide theoretical 50% thread engagement would be of the same diameter as the pitch diameter of the top.
